Basic types of perforation

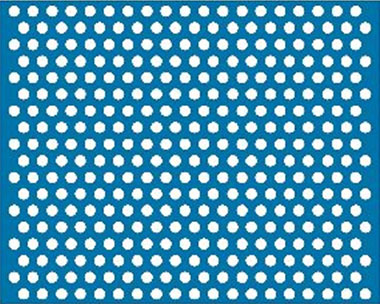

Rv Round hole - diagonal rows
Round hole - diagonal rows

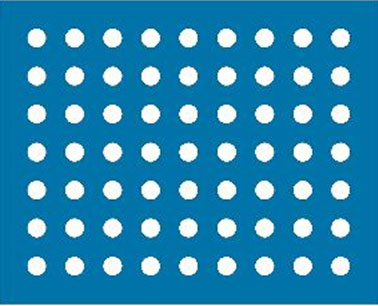

RgRound hole - straight rows
Round hole - straight rows

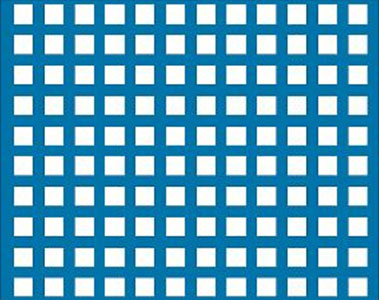

Qg Square holes - straight rows
Square holes - straight rows

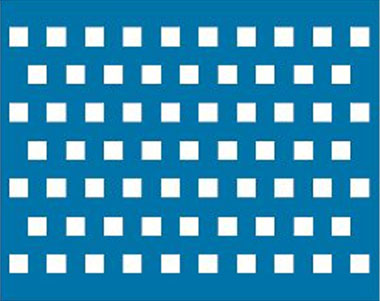

Qv Square hole - staggered rows
Square hole - staggered rows

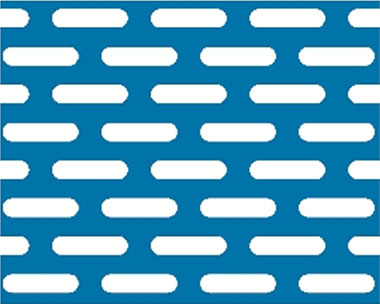

Lv Oval hole
Oval hole

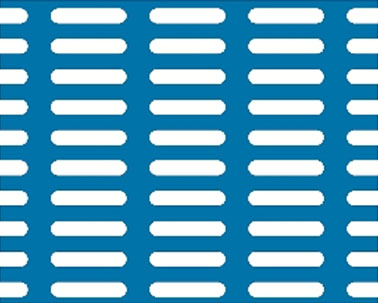

Lg Оval hole - straight rows
Оval hole - straight rows

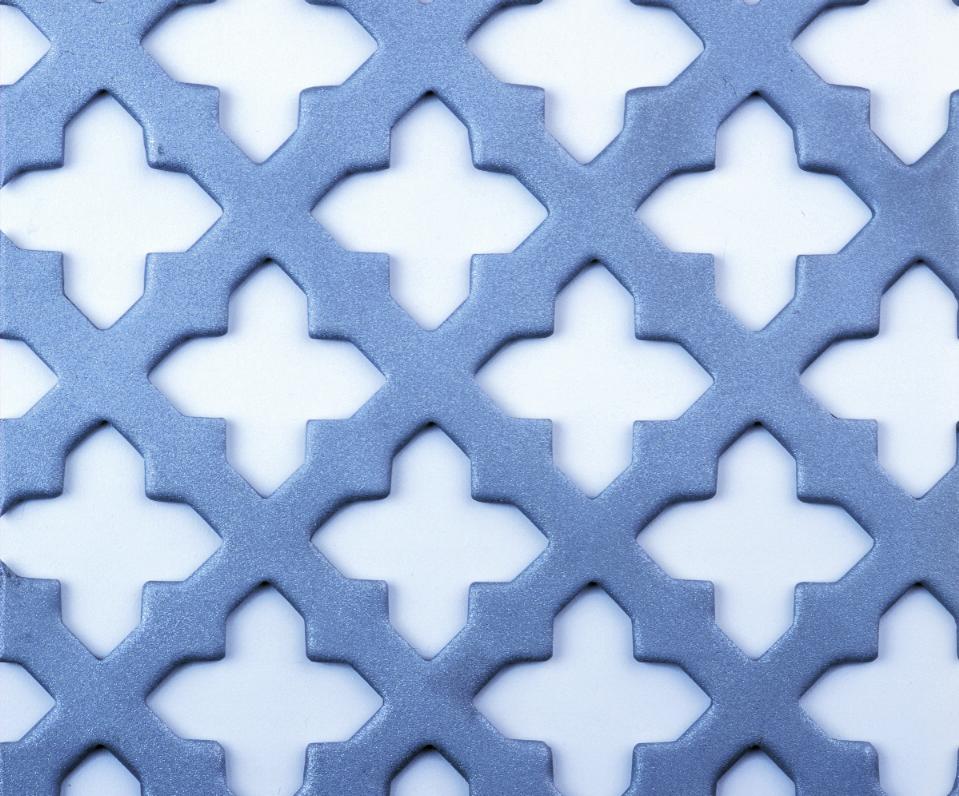

Decorative perforations
Decorative perforations
Embossed perforation
Embossed perforation

Dimensions

Thickness of the sheet

steel:0,5 - 25 mm
stainless steel:0,4 - 15 mm
aluminium:0,6 - 10 mm

the thickness of the sheet depends on
the type of punch and on the material

Format

small format:1 000 x 2 000 mm
middle format:1 250 x 2 500 mm
large format:1 500 x 3 000 mm

format of the sheet can be customized
max size: 2 500 x 6 000 mm

Materials

Steel - DC01

The most used type of material. Attracts with its price and wide range of uses. Suitable for surface treatment.

Stainless steel - AISI 304

Surprising with long life and unique features. It is not corroded, and thus meets the toughest hygiene requirements.

Galvanized steel - DX51D

Galvanized steel is surface treated with a zinc layer. It prevents corrosion of steel that initially corrodes itself.

Aluminium

It is a very light material, also used in the aviation industry. On the air it is covered with a very thin oxide layer that protects the metal from oxidation.

Magnelis

A revolutionary protective layer that is applied to steel. It is up to 10 times more durable than galvanized steel.

Other materials

We are also able to supply perforated products made of non-ferrous metals.

Variable

Thickness 0.4 - 25 mm
Format max 2.5 - 6 metres
Large variety of materials

Universal

Wide range of potential use
For industrial and household use

HIgh-quality

The most modern
production  technologies
Partnership with the biggest European producers

Reliable

The producers possesses
ISO 9001:2008
The sheets comply with the international norms DIN 24 041

Calculation of open area

Note: w, L = diameter, width or length of the hole
t = pitch between the centers of the holes
results are as a percentage
